Navceker 4K 120Hz HDMI eARC Audio Extractor With eARC OUT & Optical Toslink HDMI 2.1 Audio converter splitter 8K 60Hz 48Gbps for PS5 XBox X/S Sonos Soundbar beam

Description:

ZY-AC02,Navceker 4K 120Hz 48 Gbps HDMI 2.1 eARC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with AUDIO OUT .support audio extract function. AUDIO OUT HDMI support eARC (Enhanced Audio Return Channel).The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K@120Hz RGB 4 :4 :4 ,8/10/12 bit deep color.

Features:

HDMI eARC adapter 4K 120Hz HDMI ARC/eARC Audio Extractor Splitter HDMI Dolby Atmos Vision Audio Video Converter for sound bar

Excellent Quality

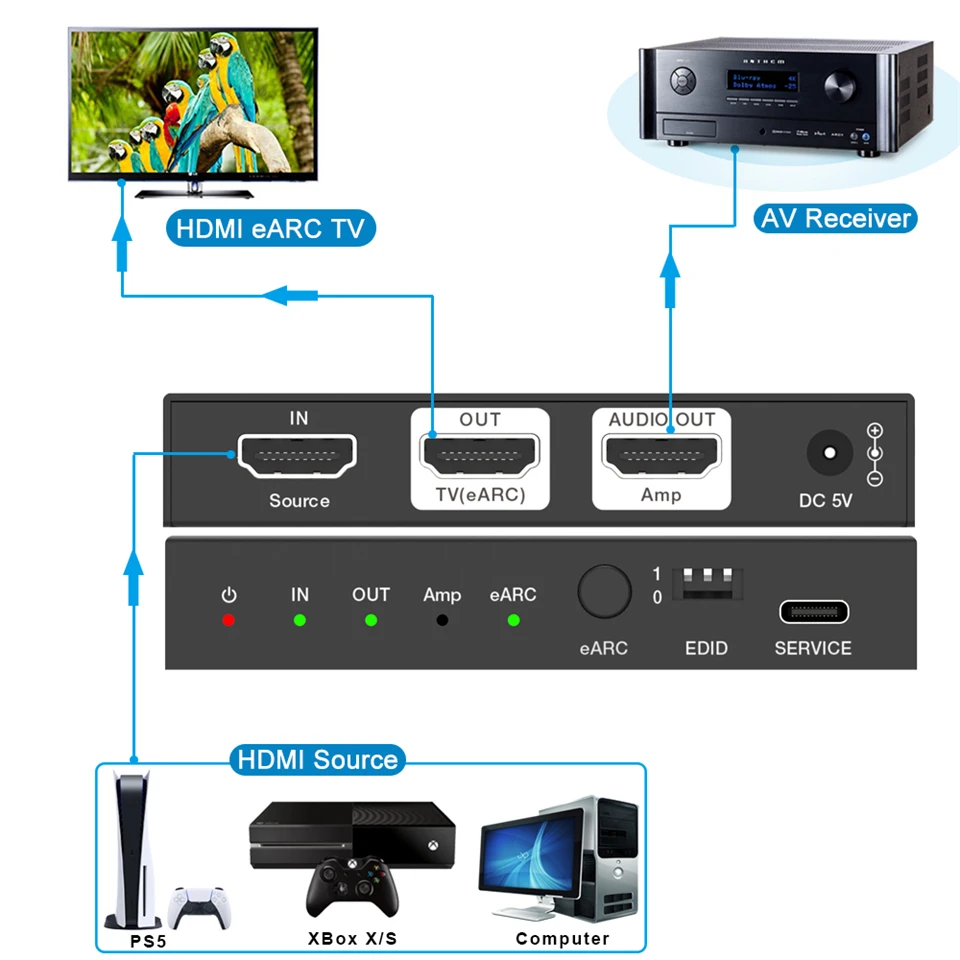

• HDMI 2.1 Audio Extractor: Extract full HDMI audio from any HDMI source signal and pass-through 8K or HDR the video to a compatible display/TV and output HDMI Audio to AV Receiver/Soundbar/Amplifier with HDMI input and get full eARC capabilities on your AV receiver. Will not extract eARC to your Soundbar

• 8K Ultra HD Support – HDMI 2.1 (48Gbps), HDCP 2.3 compliant, supports resolutions up to 8K @ 60hz, 4K @ 120hz, 4K @ 50/60Hz (YUV 4:4:4) HDR, DVI Compliant. Convert TV eARC/ARC audio to any HDMI input audio system – Extract full audio from your 4K HDMI source such as cable box or gaming system and send the 4K HDR video to the TV and enjoy the full home theater audio with your older HDMI audio receiver

• Dedicated HDMI Audio only output to connect to an AV Receiver supports Dolby Atmos, Dolby True HD, Dolby Digital, DTS Digital, DTS HD Master, Dolby/DTS 7.1&5.1CH, PCM7.1&5.1&2.0 stereo audio) Support VRR, ALLM, QMS, QFT, SBTM, as specified in HDMI 2.1.

• eARC Mode Support – extract the audio return from ARC or eARC port on TV/Display and send HDMI audio only to a non-ARC AV Receiver or eARC Soundbar for full audio experience. ARC Audio Extracton from an ARC/eARC TV.

PACKAGE:

• 5V/2A DC Power Adapter………………………….1 pcs

• User Manual………………………………………………..1 pcs

• HDMI 2.1 eARC Audio Extractor…………………..1 pcs

SPECIFICATIONS

Input ports……………………………………………………………………1XHDMI

Output port………………………………………………….. 1 XHDMI(Female type )

1 X HDMI AUDIO OUT………………………support ARC/eARC function

Audio support…………………LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio

Video Resolution………………………………….up to 4k@120Hz RGB 4 :4:4

HDMI Input/Output…………………..8K/4K@120Hz:Less than 3 meter;4K@60Hz:Less than 5 meter

Operating Temperature……………………………..0 C to 40 C/ 32Fto 104F

Storage Temperature…………………………………- 20 C to 6 C/ -4F to 104F

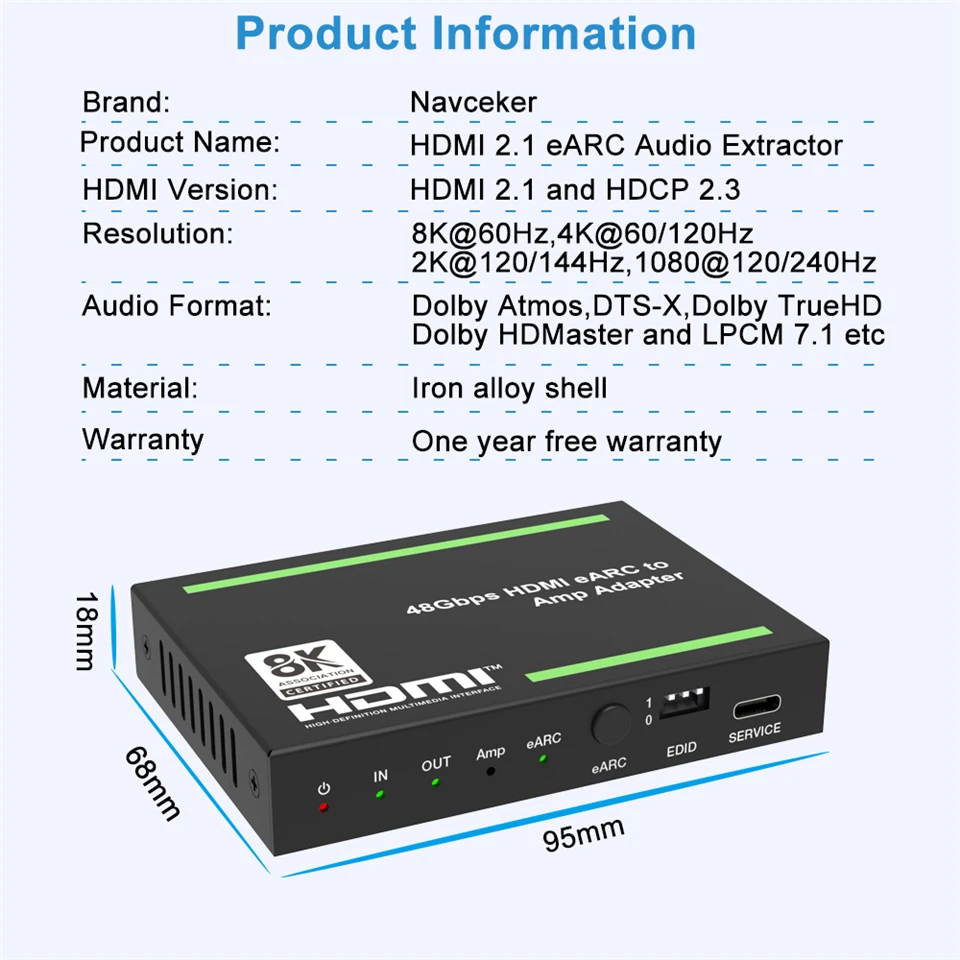

Dimensions…………………………………………………..95X68X18MM

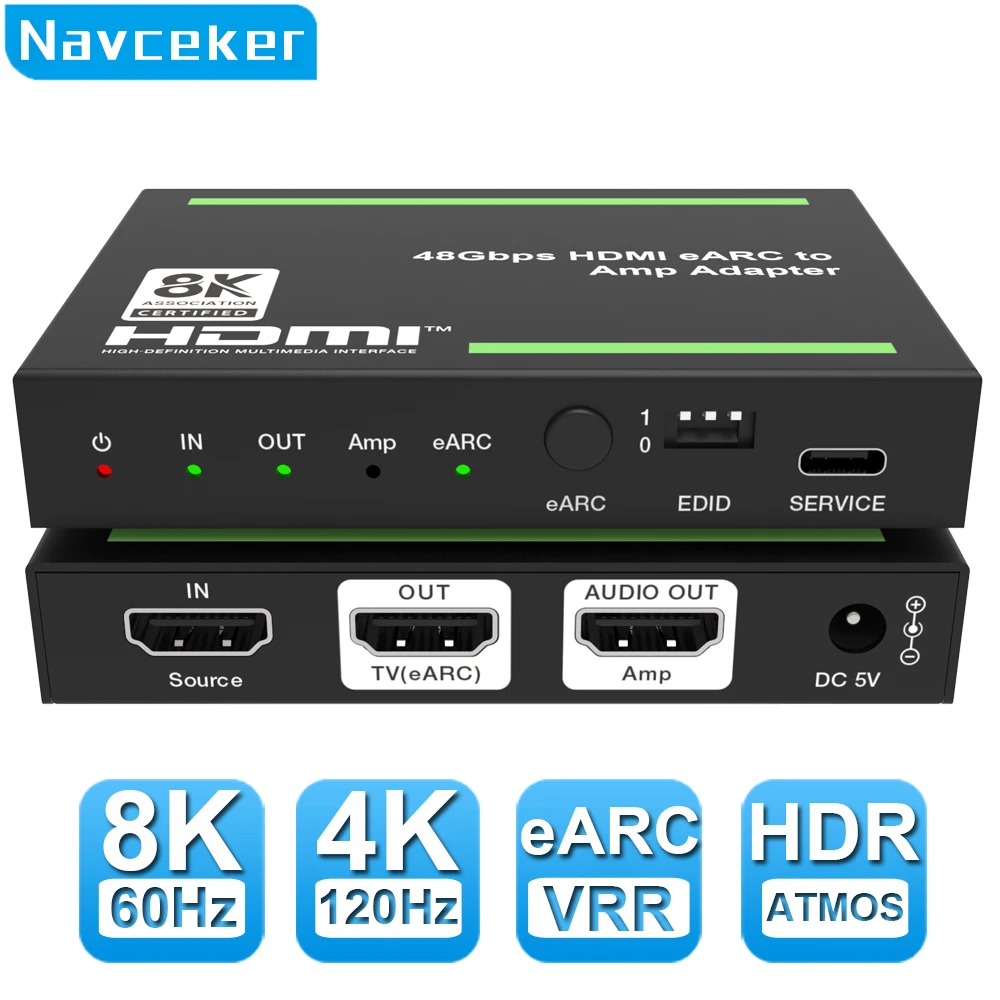

Navceker HDMI 2.1 eARC Audio Extractor

• Resolution:8K@60Hz,4K@60/120Hz,2K@120/144Hz,1080P@120/240Hz

• 48Gbps transmission Speed,CEC Control

• eARC,HDR 10+,VRR, ALLM, QMS, QFT, SBTM,Dolby Vision

• 7.1CH AUDIO OUT for HDMI INPUT(Not support HDMI eARC Port) of AV receiver or Amplifier

48Gbps tranmission HDMI 2.1 and HDCP 2.3

📂Enjoy 8K@60Hz YUV 4:2:0 12 Bit or 4K@120Hz RGB 4:4:4 10/12 Bit  VRR,HDR 10+ and Dolby Vision with CEC Control.

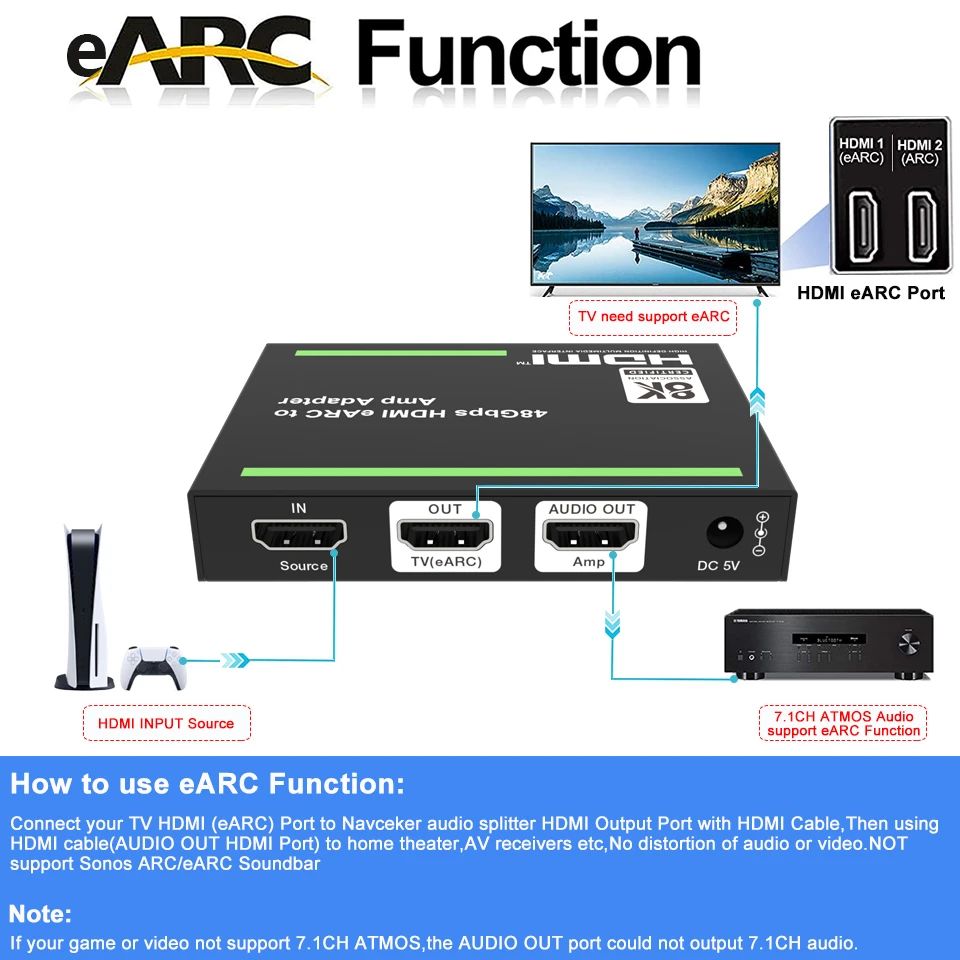

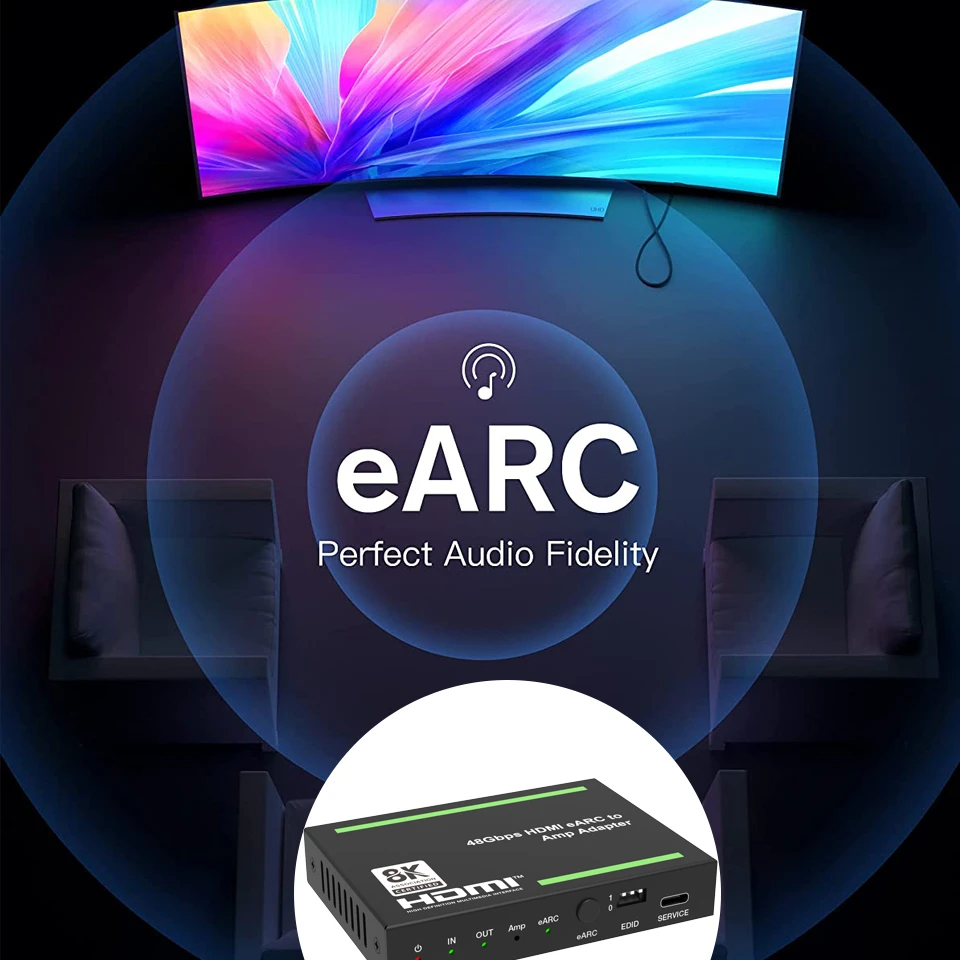

eARC :Enhanced Audio Return Channel

📂When turn on eARC of HDMI TV,you could enjoy dolby atmos on AUDIO OUT

• 7.1CH AUDIO OUT for HDMI INPUT(Not support HDMI eARC Port) of non-earc AV receiver or Amplifier

• NOT support HDMI eARC/ARC port of soundbar,such as Sonos soundbar beam

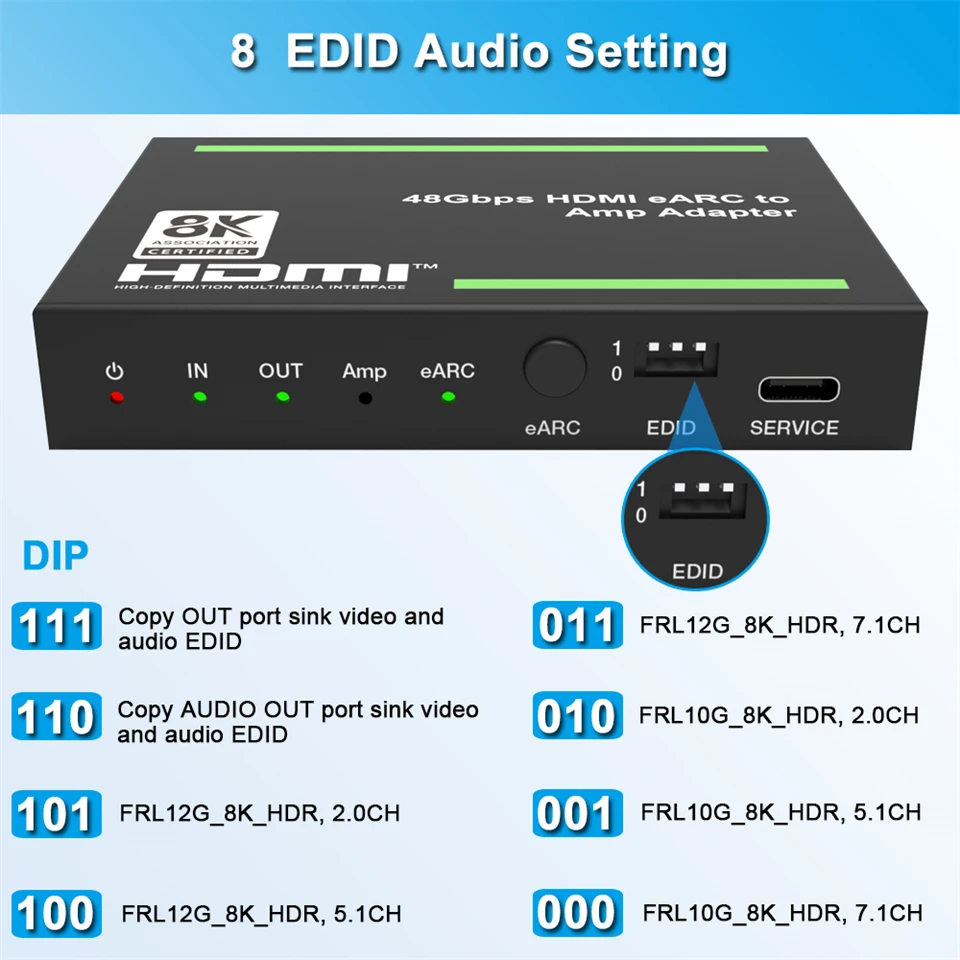

Smart EDID Management

📂There are 8 kinds of EDID mode that could help you get better video and audio.

High Resolution and High Refresh Rate

📂Navceker HDMI 2.1 audio extractor supports 8K@60Hz 12 bit,4K@120Hz 12bit,4K@60Hz,

2K@120/144Hz,1080P@60/120/240Hz

VRR :variable refresh rate

📂It could enjoy HDR 10+,VRR, ALLM, QMS, QFT, SBTM of standard HDMI 2.1 version.

Enjoy 7.1CH Audio

📂Surround Channel supported,it supports Dolby Atmos,DTS-X,Dolby TrueHD,DTS-HDMaster,LPCM 7.1 etc with AUDIO OUT HDMI port and eARC OUT HDMI port .
